磨合銅刷犘打的得力助手！
這是一款專為銅刷犘打設計的簡易磨合油。無需高電壓磨合！
磨合方法
[所需物品]
Tune系列馬達（全新或輕度使用）
PLM潤滑油磨合油（銅刷磨合犘打油）
液體清潔劑（塑膠安全/不損傷樹脂。避免使用氣霧劑/噴霧型清潔劑，因為它們可能會導致內部冷凝。）
電源或電池盒
步驟1：檢查磨合前轉速 在開始磨合過程之前，將馬達連接到電源，並使用測量應用或轉速表檢查基準轉速。我們建議使用3.0V作為測量馬達性能的標準基準。
步驟2：塗抹磨合油 ⚠️ 重要前提條件 在塗抹磨合油之前，請勿清洗或沖洗馬達。請勿洗掉馬達內部原有的潤滑脂。我們的磨合油專為與原有潤滑脂配合使用而設計。斷開馬達與電源的連接。透過馬達的散熱孔，將 1 至 2 滴磨合油直接滴在換向器（電刷接觸的銅質圓柱體）上。小貼士：不要滴太多。少量即可滲透電刷。用手轉動馬達軸幾次，使油均勻分佈。
步驟 3：磨合運轉 將馬達連接到電源。以較高的電壓（例如，約 5.0V）正轉運轉馬達約 5 至 10 分鐘，然後反轉極性再運轉 5 至 10 分鐘。 （注意：請根據您個人的磨合方法調整電壓和時間。）
步驟 4：沖洗電刷灰塵 ⚠️ 關鍵步驟 沖洗掉換向器區域的銅粉和污垢，可以透過注入額外的磨合油或使用塑膠安全型液體清潔劑（必須為室溫，以防止冷凝）進行清洗。 （警告：選擇液體清潔劑時務必謹慎。某些清潔劑不適用於電機，可能會對性能產生負面影響，例如導致轉速下降。）
步驟 5：最終潤滑和塗層 馬達磨合完成後，滴一滴「銅刷磨合犘打油」以保護新暴露的銅表面免受氧化（氧化膜）的影響，並保持最佳性能。
[安全注意事項]
務必在通風良好的區域使用。
易燃。遠離火源、火花或明火。
必要時請戴上安全眼鏡，以防止飛濺的油或清潔劑進入眼睛。
避免吸入揮發的油。
兒童使用時必須有成人嚴格監督。請務必格外小心。
A strong ally for those who use tune motors!
This is an easy break-in oil specifically for tune motors. No high voltage break-in required!
Breaking in Tune Series Motors with PLM LUBRICANTS
Tune series motors (such as Torque-Tune, Atomic-Tune, Light-Dash, etc.) use copper brushes. Breaking them in correctly is the key to unlocking maximum RPM and torque. Our break-in oil is specially formulated to optimize the contact patch of the copper brushes while preventing excessive wear.
Break-in Method
[ Items Needed ]
Tune series motor (Brand new or lightly used)

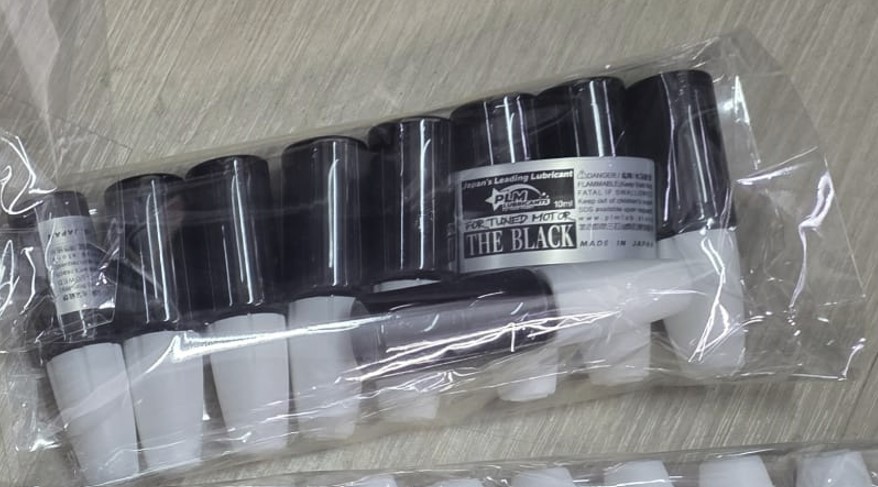

PLM LUBRICANTS Break-in Oil (For Tuned Motors: THE BLACK)
Liquid cleaner (Plastic-safe / Non-damaging to resin. Avoid aerosol/spray types as they can cause internal condensation.)
Power supply or battery case
Step 1: Check Pre-Break-in RPM Connect the motor to your power source and check the baseline RPM using a measurement app or tachometer before starting the break-in process. We recommend using 3.0V as a standard baseline for measuring motor performance.
Step 2: Apply the Oil ⚠️ IMPORTANT PRE-CONDITION Do NOT wash or flush the motor before applying the break-in oil. Do not wash away the factory-applied grease inside the motor. Our break-in oil is specifically designed to utilize and work together with this existing grease. Disconnect the motor from the power source. Apply 1 to 2 drops of the break-in oil directly onto the commutator (the copper cylinder where the brushes make contact) through the motor's cooling holes. Pro Tip: Do not over-apply. A small amount is enough to penetrate the brushes. Turn the motor shaft by hand a few times to spread the oil evenly.
Step 3: Break-in Run Connect the motor to your power supply. Run the motor at a higher voltage (e.g., around 5.0V) for about 5 to 10 minutes in regular rotation, then reverse the polarity and run for another 5 to 10 minutes. (Note: Please adjust the voltage and time according to your own preferred break-in method.)
Step 4: Flush the Brush Dust ⚠️ CRITICAL STEP Flush out the copper dust and dirt from the commutator area either by injecting additional break-in oil or by using a plastic-safe liquid cleaner (must be room temperature to prevent condensation). (Warning: Be careful when choosing a liquid cleaner. Some cleaners are unsuitable for motors and can negatively affect performance, such as causing a drop in RPM.)
Step 5: Final Lubrication & Coating Once the motor break-in is complete, apply 1 drop of "For Tuned Motors: THE BLACK" to protect the freshly exposed copper surface from oxidation (oxide film) and maintain peak performance.

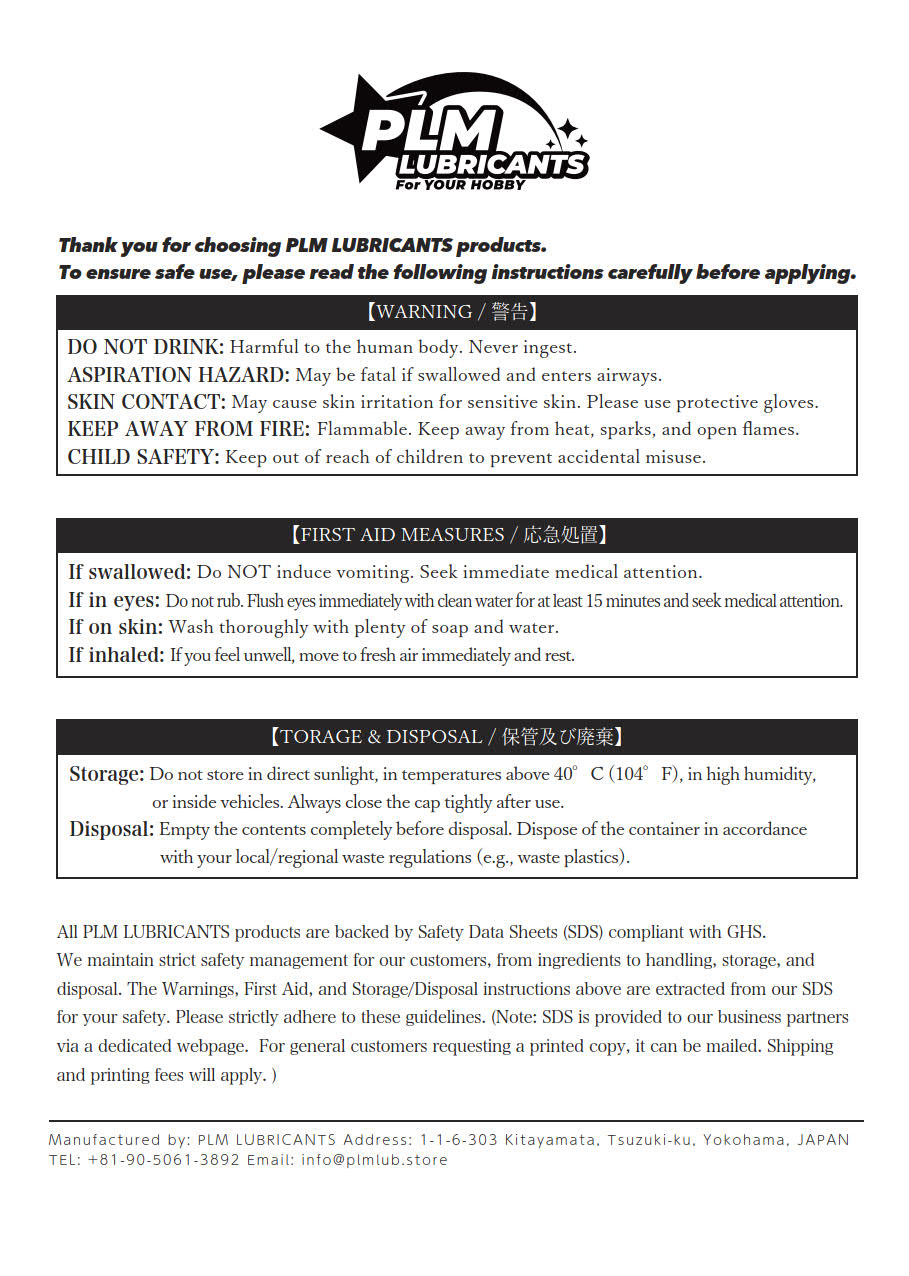

[ Safety Notes ]
Always use in a well-ventilated area.
Flammable. Keep away from fire, sparks, or open flames.
Wear safety glasses if necessary to prevent splashed oil or cleaner from entering your eyes.
Avoid inhaling vaporized oil.
Strict adult supervision is required when used by children. Please exercise extreme caution.
