本產品可以快速磨合碳刷犘打。我們專注於「導電性和潤滑性」的研發。
即使使用 Mach Dash犘打 ，也只需約 5 分鐘的磨合時間（時間取決於每顆馬達的個體不同）。
磨合方法
[所需物品]
Dash系列馬達（全新或輕度使用）

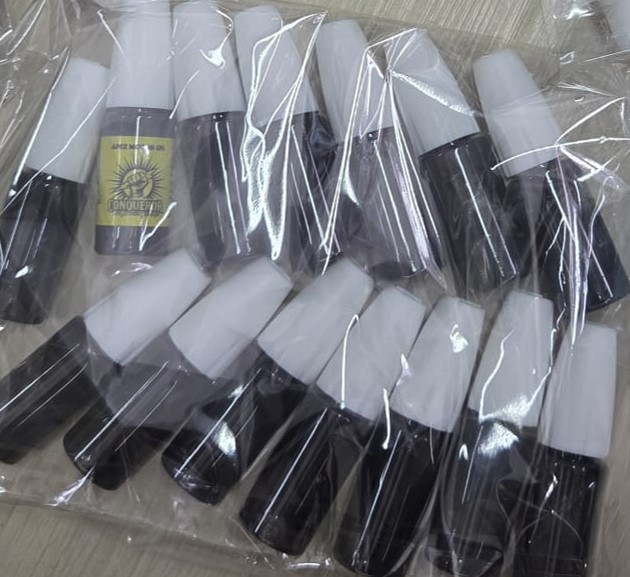

PLM Lubricants 磨合油（征服者犘打油）
液體清潔劑（塑膠安全/不損傷樹脂。避免使用氣霧劑/噴霧型清潔劑，因為它們可能會導致內部冷凝。）
電源或電池盒
步驟1：檢查磨合前轉速 將馬達連接到電源，並在開始磨合過程之前，使用測量應用程式或轉速表檢查基準轉速。
步驟2：塗抹磨合油 斷開馬達與電源的連接。通過馬達的散熱孔，將1至2滴磨合油直接滴在換向器（碳刷接觸的銅質圓柱體）上。提示：不要塗抹過多。少量即可滲透到碳刷中。用手轉動馬達軸幾次，使磨合油均勻分佈。
步驟 3：磨合運轉 將馬達連接到電源。以低至中等電壓（例如 2.4V 至 3.0V）正轉運轉馬達約 3 至 5 分鐘，然後反轉極性再運轉 3 至 5 分鐘。 （注意：請根據您個人的磨合方法調整電壓和時間。）
步驟 4：清除碳粉 ⚠️ 關鍵步驟 由於 Dash 馬達使用碳刷，磨合過程會產生大量黑色碳粉。如果這些碳粉殘留在馬達內部，可能會導致短路或降低馬達轉速。請透過注入額外的磨合油或使用塑膠安全型液體清潔劑（必須為室溫以防止冷凝）沖洗換向器區域的黑色污垢，直至流出的液體清澈為止。 （警告：選擇液體清潔劑時務必謹慎。某些清潔劑不適用於電機，可能會對電機性能產生負面影響，例如導致轉速下降。）
步驟 5：最終潤滑和塗層 馬達磨合完成後，滴一滴優質換向器保護劑（例如 PLM LUBRICANTS 的 Motor Conditioner BLACK COMMU-SEALER），以保護新暴露的銅表面免受氧化（氧化膜）的影響，並保持最佳性能。
[安全注意事項]
務必在通風良好的區域使用。
易燃。遠離火源、火花或明火。
必要時請戴上安全眼鏡，以防止飛濺的油或清潔劑進入眼睛。
避免吸入揮發的油。
兒童使用時必須有成人嚴格監督。請務必格外小心。
The conventional idea of "quickly wearing down brushes" is completely absent from this product concept. We focused our development efforts on "conductivity and lubrication."
Even with Mach Dash, only about 5 minutes of break-in work is required *depending on the individual motor.
Break-in Method
[ Items Needed ]
Dash series motor (Brand new or lightly used)
PLM LUBRICANTS Break-in Oil (NEO Motor Oil CONQUEROR)
Liquid cleaner (Plastic-safe / Non-damaging to resin. Avoid aerosol/spray types as they can cause internal condensation.)
Power supply or battery case
Step 1: Check Pre-Break-in RPM Connect the motor to your power source and check the baseline RPM using a measurement app or tachometer before starting the break-in process.
Step 2: Apply the Oil Disconnect the motor from the power source. Apply 1 to 2 drops of the break-in oil directly onto the commutator (the copper cylinder where the carbon brushes make contact) through the motor's cooling holes. Pro Tip:Do not over-apply. A small amount is enough to penetrate the brushes. Turn the motor shaft by hand a few times to spread the oil evenly.
Step 3: Break-in Run Connect the motor to your power supply. Run the motor at a low to medium voltage (e.g., 2.4V to 3.0V) for about 3 to 5 minutes in regular rotation, then reverse the polarity and run for another 3 to 5 minutes. (Note: Please adjust the voltage and time according to your own preferred break-in method.)
Step 4: Flush the Carbon Dust ⚠️ CRITICAL STEP Because Dash motors use carbon brushes, the break-in process will produce a large amount of black carbon dust. Leaving this dust inside can cause short circuits or slow down the motor. Flush out the black dirt from the commutator area either by injecting additional break-in oil or by using a plastic-safe liquid cleaner (must be room temperature to prevent condensation) until the runoff becomes clear. (Warning: Be careful when choosing a liquid cleaner. Some cleaners are unsuitable for motors and can negatively affect performance, such as causing a drop in RPM.)
Step 5: Final Lubrication & Coating Once the motor break-in is complete, apply 1 drop of a high-quality commutator protector (such as Motor Conditioner BLACK COMMU-SEALER by PLM LUBRICANTS) to protect the freshly exposed copper surface from oxidation (oxide film) and maintain peak performance.
[ Safety Notes ]
Always use in a well-ventilated area.
Flammable. Keep away from fire, sparks, or open flames.
Wear safety glasses if necessary to prevent splashed oil or cleaner from entering your eyes.
Avoid inhaling vaporized oil.
Strict adult supervision is required when used by children. Please exercise extreme caution.
